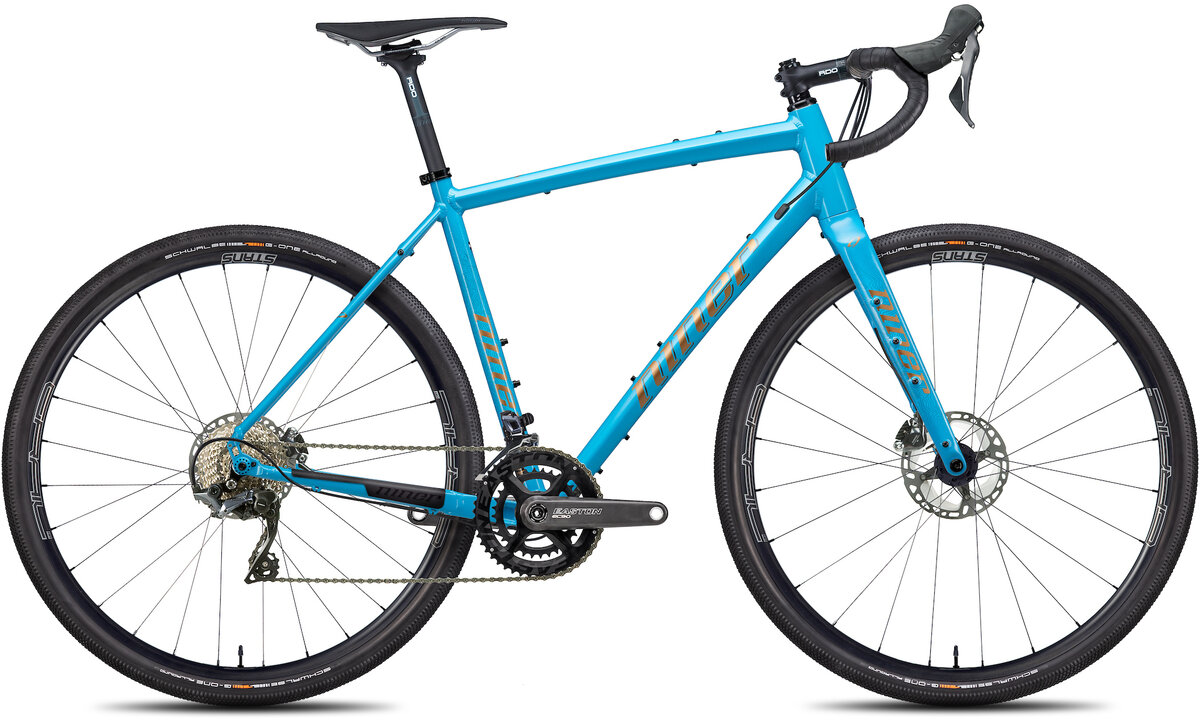

Niner RLT 9 5-Star GRX 2x
$5,099.00
Details
RLT 9 Aluminum: ride beyond the city limits, without going beyond your budget. The unmatched versatility of this gravel bike gives its rider pure, unfettered freedom and access virtually everywhere.
| 47cm | 50cm | 53cm | 56cm | 59cm | 62cm | ||
|---|---|---|---|---|---|---|---|
| A. Reach (mm) | 361 | 365 | 374 | 383 | 397 | 407 | |
| B. Stack (mm) | 537 | 558 | 578 | 594 | 615 | 636 | |
| C. Standover (mm) | 705 | 728 | 753 | 780 | 805 | 830 | |
| D. Effective Top Tube (mm) | 510 | 525 | 545 | 565 | 585 | 605 | |
| E. Head Tube Angle | 70° | 70.5° | 71° | 71.5° | 72° | 72.5° | |
| F. Head Tube Length (mm) | 105 | 125 | 145 | 165 | 185 | 205 | |
| G. Seat Tube Angle | 74.5° | 74° | 73.5° | 73° | 73° | 72.5° | |
| H. Seat Tube Length (mm) | 430 | 460 | 490 | 520 | 550 | 580 | |
| J. Bottom Bracket Drop (mm) | 75 | 75 | 75 | 70 | 70 | 70 | |
| K. Fork Rake/Offset (mm) | 45 | 45 | 45 | 45 | 45 | 45 | |
| M. Wheelbase (mm) | 1005 | 1012 | 1023 | 1036 | 1051 | 1060 | |
| N. Front to Center (mm) | 582 | 589 | 599 | 610 | 625 | 634 | |
| O. Chainstay Length (mm) | 430 | 430 | 430 | 430 | 430 | 430 |
Specs
| Frame | NINER HYDROFORMED 6061 ALUMINUM; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; FLAT MOUNT; 12X142 THRU AXLE |
|---|---|
| Fork | NINER RDO FULL CARBON; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; INTERNAL CABLE ROUTING; FLAT MOUNT; 12X100 THRU AXLE |
| Rims | Stans NoTubes Grail CB7, 700c carbon clincher |
| Hubs | Stans NoTubes Neo Ultimate, centerlock |
| Spokes | Sapim Laser |
| Axles |
Front: 12x100mm thru axle Rear: 12x142mm thru axle |
| Tires | SCHWALBE G-ONE ALLROUND EVO SUPER TERRAIN, TLE, ADDIX SPEEDGRIP, 700 X 45 |
| Bottom Bracket | EASTON PF30 |
| Crankset | EASTON EC90 CARBON 47X32T (47/50 - 170MM, 53/56 - 172.5MM, 59/62 - 175MM) |
| Chainrings | 47x32T |
| Shifters | SHIMANO GRX800 11SP |
| Front Derailleur | SHIMANO ULTEGRA R8000 |
| Rear Derailleur | SHIMANO GRX800 GS 11SP SHADOW PLUS |
| Cassette/Freewheel | SHIMANO ULTEGRA HG800 11SP 11-34T |
| Chain | SHIMANO HG 601 11SP |
| Brakes | SHIMANO GRX800 |
| Brake Levers | SHIMANO GRX800 |
| Handlebars | EASTON EA50 AX (47/50- 420MM, 53/56- 440MM, 59/62- 460MM) |
| Tape/Grips | NINER BAR TAPE |
| Stem | NINER RDO STEM, NINER GRAPHIC (47/50- 80MM, 53/56- 90MM, 59/62- 100MM) |
| Headset | NINER INTEGRATED SHIS DESCRIPTION IS42/28.6|IS52/40 |
| Seatpost | NINER RDO SEAT POST, 400MM, NINER GRAPHIC |
| Saddle | NINER CUSTOM WITH CRN-TI RAILS, EMBOSSED NINER GRAPHIC |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Azure Blue / 47cm | 000252247802 | 00-025-22-47-80 |
| Azure Blue / 50cm | 000252250802 | 00-025-22-50-80 |
| Azure Blue / 53cm | 000252253803 | 00-025-22-53-80 |
| Azure Blue / 56cm | 000252256804 | 00-025-22-56-80 |
| Azure Blue / 59cm | 000252259805 | 00-025-22-59-80 |
| Azure Blue / 62cm | 000252262805 | 00-025-22-62-80 |
