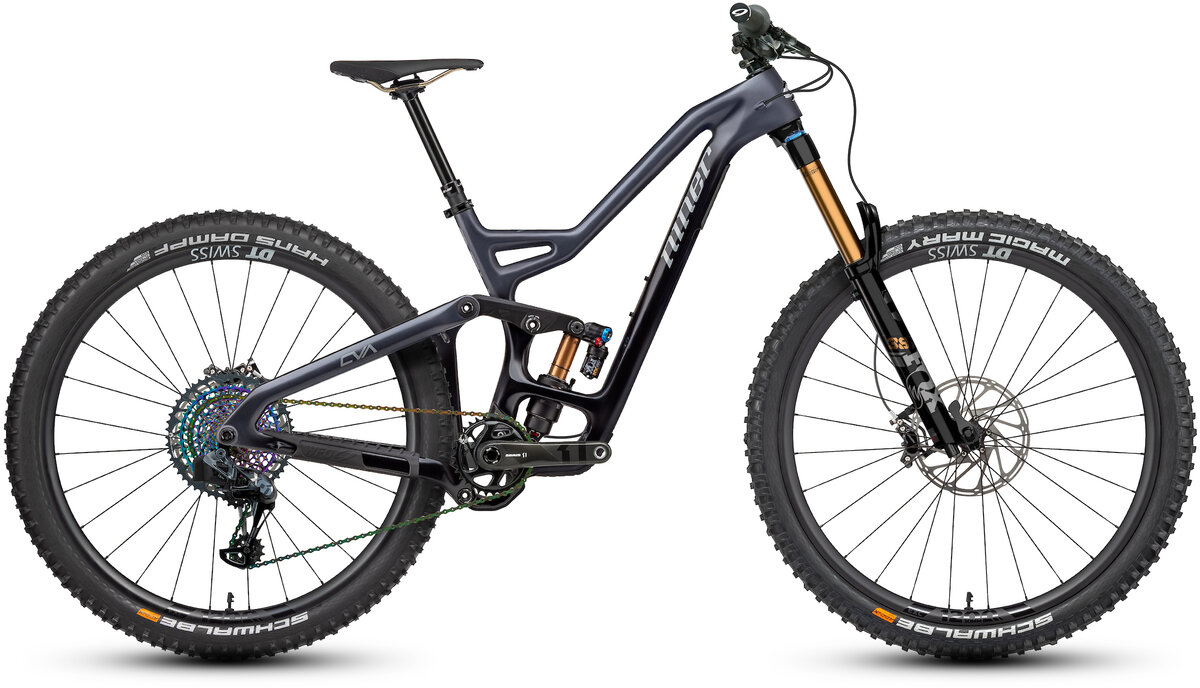

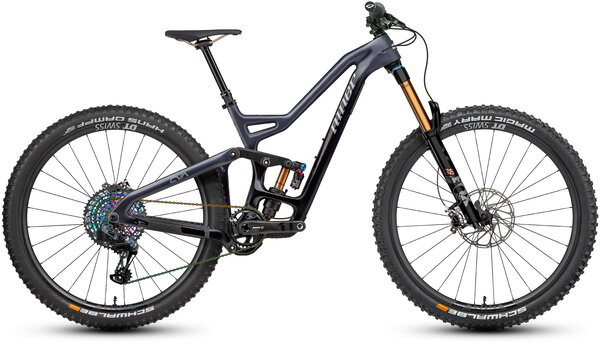

Niner WFO 9 RDO 5-Star X01 Eagle AXS LTD
$10,599.00
Details
With 170mm of stable CVA rear suspension, a 180mm travel fork, adjustable geometry, stout frame construction, and Niner's signature RDO carbon fiber construction, the WFO 9 RDO is an enduro-ready brawler for the gnarliest downhills, yet with the pedaling prowess to get you to the top in style.
Low Mode
| SM | MD | LG | ||
|---|---|---|---|---|
| A. Reach (mm) | 430 | 430 | 430 | |
| B. Stack (mm) | 626 | 631 | 635 | |
| C. Standover (mm) | 725 | 727 | 748 | |
| D. Effective Top Tube (mm) | 575 | 597 | 627 | |
| E. Head Tube Angle |
64° | 64° | 64° | |
| F. Head Tube Length (mm) |
90 | 95 | 100 | |
| G. Seat Tube Angle |
77° | 77° | 77° | |
| H. Seat Tube Length (mm) | 390 | 419 | 462 | |
| J. Bottom Bracket Drop (mm) | 28 | 28 | 28 | |
| M. Wheelbase (mm) | 1205 | 1227 | 1259 | |
| N. Front to Center (mm) | 771 | 794 | 826 | |
| O. Chainstay Length (mm) | 433 | 433 | 433 |
High Mode
| SM | MD | LG | ||
|---|---|---|---|---|
| A. Reach (mm) | 437 | 437 | 437 | |
| B. Stack (mm) | 621 | 626 | 630 | |
| C. Standover (mm) | 732 | 734 | 755 | |
| D. Effective Top Tube (mm) | 573 | 595 | 625 | |
| E. Head Tube Angle | 64.7° | 64.7° | 64.7° | |
| F. Head Tube Length (mm) | 90 | 95 | 100 | |
| G. Seat Tube Angle | 77.7° | 77.7° | 77.7° | |
| H. Seat Tube Length (mm) | 390 | 419 | 462 | |
| J. Bottom Bracket Drop (mm) | 19 | 19 | 19 | |
| M. Wheelbase (mm) | 1203 | 1225 | 1257 | |
| N. Front to Center (mm) | 770 | 793 | 825 | |
| O. Chainstay Length (mm) | 433 | 433 | 433 |
Specs
| Frame | NINER RDO CARBON FIBER, 170MM TRAVEL, GEO FLIP CHIP, RIB CAGE CONSTRUCTION, FULL SLEEVE CABLE ROUTING, ENDURO MAX BLACK OXIDE PIVOT BEARINGS |
|---|---|
| Fork | FOX 38 FLOAT FACTORY GRIP 2 EVOL, HSC, LSC, HSR, LSR, KASHIMA COAT, 180MM, 110X15MM, 44MM OFFSET |
| Rear Shock | FOX FLOAT X2 FACTORY EVOL 2 POSITION, KASHIMA COAT |
| Rims | DT Swiss EXC 1200 SPLINE, carbon clincher, 30mm internal, 110x15mm, centerlock |
| Hubs | DT Swiss 180, Centerlock with Ratchet EXP 36 |
| Spokes | DT aero comp straight pull |
| Axles |
Front: Boost 15x110mm thru axle Rear: Boost 12x148mm thru axle |
| Tires |
FRONT: SCHWALBE MAGIC MARY EVO SUPER TRAIL TLE ADDIX SOFT 2.6 REAR: SCHWALBE HANS DAMPF EVO SUPER TRAIL TLE ADDIX SOFT 2.6 |
| Bottom Bracket | SRAM DUB BSA THREADED |
| Crankset | SRAM X1 EAGLE CARBON DUB, 32T, 170MM |
| Chainrings | 32T |
| Shifters | SRAM AXS EAGLE 12SP |
| Rear Derailleur | SRAM X01 AXS EAGLE 12SP WITH BATTERY COVER |
| Cassette/Freewheel | SRAM EAGLE XG 1299, 10-52T RAINBOW |
| Chain | SRAM XX1 EAGLE 12SP RAINBOW |
| Brakes | SRAM CODE RSC |
| Brake Levers | SRAM CODE RSC |
| Handlebars | RACE FACE NEXT R 800MM WIDE, 35MM RISE, 35MM CLAMP |
| Tape/Grips | NINER GRRRIPS L/O FLANGED SOFT COMPOUND |
| Stem | RACE FACE TURBINE R 40MM, 35MM CLAMP |
| Headset | NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6|ZS56/40 |
| Seatpost | KS LEV SI (S-125MM, M-150MM, L/XL-175MM) |
| Saddle | NINER CUSTOM TR WITH CRN-TI RAILS, PRINTED NINER GRAPHIC |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Fade to Black / Small | 042692203208 | 04-269-22-03-20 |
| Fade to Black / Medium | 042692204205 | 04-269-22-04-20 |
| Fade to Black / Large | 042692205202 | 04-269-22-05-20 |
| Hot Tamale / Small | 042692203406 | 04-269-22-03-40 |
| Hot Tamale / Medium | 042692204403 | 04-269-22-04-40 |
| Hot Tamale / Large | 042692205400 | 04-269-22-05-40 |
