Niner WFO 9 RDO 3-Star GX Eagle AXS LTD

Niner WFO 9 RDO 3-Star GX Eagle AXS LTD
  • Color: Fade to Black
  • Color: Hot Tamale
$7,499.00
Color:
Size: Select size
Please select options Unavailable
Give us a call for availability!

Details

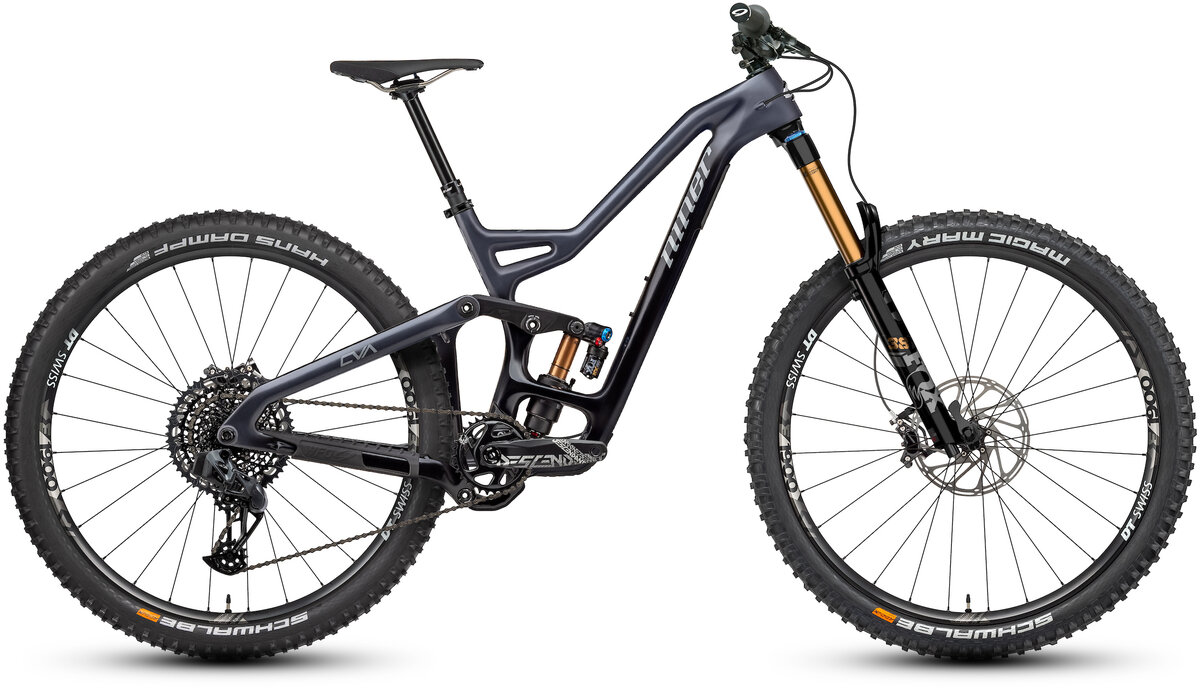

With 170mm of stable CVA rear suspension, a 180mm travel fork, adjustable geometry, stout frame construction, and Niner's signature RDO carbon fiber construction, the WFO 9 RDO is an enduro-ready brawler for the gnarliest downhills, yet with the pedaling prowess to get you to the top in style.

bike frame with labeled dimensions

Low Mode

Bike Sizes:
SMMDLG
A. Reach (mm) 430 430 430
B. Stack (mm) 626 631 635
C. Standover (mm) 725 727 748
D. Effective Top Tube (mm) 575 597 627
E. Head Tube Angle
64° 64° 64°
F. Head Tube Length (mm)
90 95 100
G. Seat Tube Angle
77° 77° 77°
H. Seat Tube Length (mm) 390 419 462
J. Bottom Bracket Drop (mm) 28 28 28
M. Wheelbase (mm) 1205 1227 1259
N. Front to Center (mm) 771 794 826
O. Chainstay Length (mm) 433 433 433
High Mode
Bike Sizes:
SMMDLG
A. Reach (mm) 437 437 437
B. Stack (mm) 621 626 630
C. Standover (mm) 732 734 755
D. Effective Top Tube (mm) 573 595 625
E. Head Tube Angle 64.7° 64.7° 64.7°
F. Head Tube Length (mm) 90 95 100
G. Seat Tube Angle 77.7° 77.7° 77.7°
H. Seat Tube Length (mm) 390 419 462
J. Bottom Bracket Drop (mm) 19 19 19
M. Wheelbase (mm) 1203 1225 1257
N. Front to Center (mm) 770 793 825
O. Chainstay Length (mm) 433 433 433

Specs

Frame NINER RDO CARBON FIBER, 170MM TRAVEL, GEO FLIP CHIP, RIB CAGE CONSTRUCTION, FULL SLEEVE CABLE ROUTING, ENDURO MAX BLACK OXIDE PIVOT BEARINGS
Fork FOX 38 FLOAT FACTORY GRIP 2 EVOL, HSC, LSC, HSR, LSR, KASHIMA COAT, 180MM, 110X15MM, 44MM OFFSET
Rear Shock FOX FLOAT X2 FACTORY EVOL 2 POSITION, KASHIMA COAT
Rims DT Swiss E 1900 SPLINE, aluminum clincher, 30mm internal, 110x15mm, centerlock
Hubs DT Swiss 370 Centerlock, with 3-pawl
Spokes DT Champion straight pull
Axles Front: Boost 15x110mm thru axle
Rear: Boost 12x148mm thru axle
Tires FRONT: SCHWALBE MAGIC MARY EVO SUPER TRAIL TLE ADDIX SOFT 2.6
REAR: SCHWALBE HANS DAMPF EVO SUPER TRAIL TLE ADDIX SOFT 2.6
Bottom Bracket SRAM DUB BSA THREADED
Crankset SRAM DESCENDANT 7K EAGLE DUB, 32T, 170MM
Chainrings 32T
Shifters SRAM GX EAGLE AXS 12SP
Rear Derailleur SRAM GX EAGLE AXS 12SP WITH BATTERY COVER
Cassette/Freewheel SRAM EAGLE XG 1275, 10-52T
Chain SRAM GX EAGLE 12SP
Brakes SRAM CODE R
Brake Levers SRAM CODE R
Handlebars RACE FACE AEFFECT R 780MM WIDE, 20MM RISE, 35MM CLAMP
Tape/Grips NINER GRRRIPS L/O NYLON SOFT COMPOUND
Stem RACE FACE AEFFECT R 40MM, 35MM CLAMP
Headset NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6|ZS56/40
Seatpost KS LEV SI (S-125MM, M-150MM, L/XL-175MM)
Saddle NINER CUSTOM TR WITH CR-MO RAILS, PRINTED NINER GRAPHIC

* Subject to change without notice.

Part Numbers

Option UPC MPN
Fade to Black / Small 042792203207 04-279-22-03-20
Fade to Black / Medium 042792204204 04-279-22-04-20
Fade to Black / Large 042792205201 04-279-22-05-20
Hot Tamale / Small 042792203405 04-279-22-03-40
Hot Tamale / Medium 042792204402 04-279-22-04-40
Hot Tamale / Large 042792205409 04-279-22-05-40
