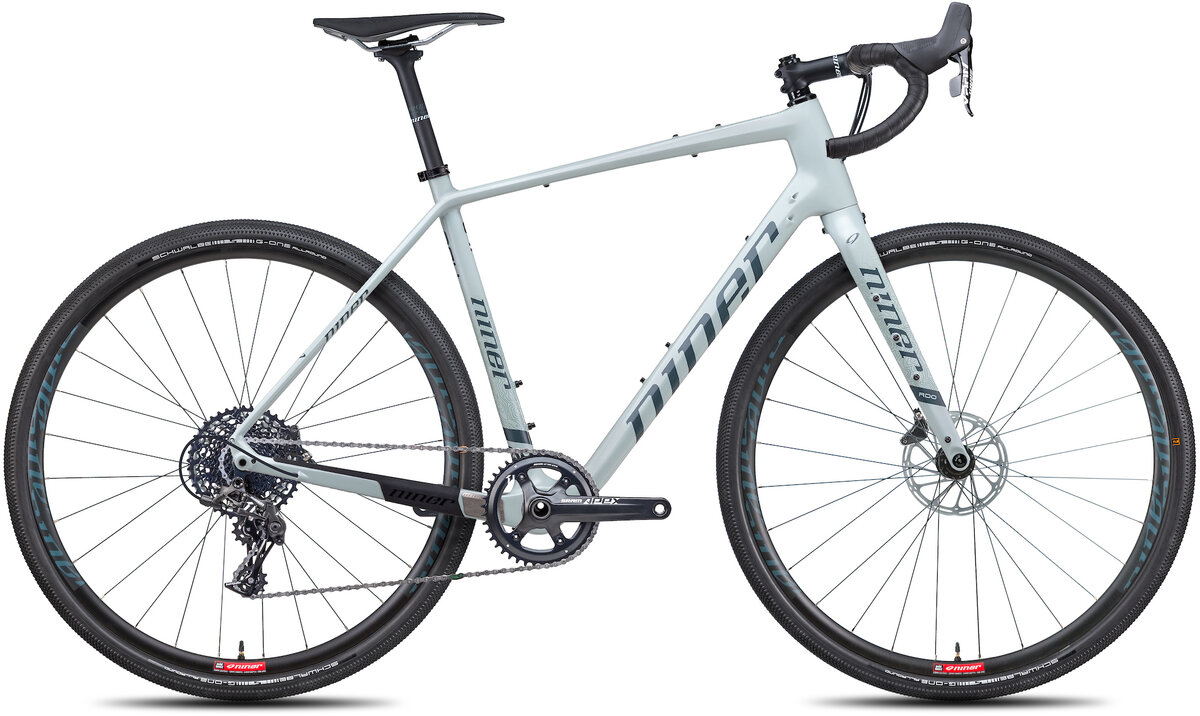

Niner RLT 9 RDO 2-Star Apex 1
$3,299.00
Details
With our newest RLT 9 RDO, we built you a high end carbon gravel bike that you'll want to ride all the time, to any place. With 50c tire clearance, multiple fitments for accessories and cargo, plus slick frame features and a smooth ride, you can pedal it and be happy - anywhere and everywhere.
| 47cm | 50cm | 53cm | 56cm | 59cm | 62cm | ||
|---|---|---|---|---|---|---|---|
| A. Reach (mm) | 362 | 366 | 374 | 384 | 398 | 405 | |
| B. Stack (mm) | 535 | 556 | 577 | 592 | 613 | 634 | |
| C. Standover (mm) | 693 | 731 | 754 | 780 | 804 | 827 | |
| D. Effective Top Tube (mm) | 510 | 525 | 545 | 565 | 585 | 605 | |
| E. Head Tube Angle | 70° | 70.5° | 71° | 71.5° | 72° | 72.5° | |
| F. Head Tube Length (mm) | 105 | 125 | 145 | 165 | 185 | 205 | |
| G. Seat Tube Angle | 74.5° | 74° | 73.5° | 73° | 73° | 72.5° | |
| H. Seat Tube Length (mm) | 430 | 460 | 490 | 520 | 550 | 580 | |
| J. Bottom Bracket Drop (mm) | 75 | 75 | 75 | 70 | 70 | 70 | |
| K. Fork Rake/Offset (mm) | 45 | 45 | 45 | 45 | 45 | 45 | |
| M. Wheelbase (mm) | 1000 | 1007 | 1017 | 1030 | 1045 | 1054 | |
| N. Front to Center (mm) | 581 | 589 | 600 | 611 | 626 | 634 | |
| O. Chainstay Length (mm) | 430 | 430 | 430 | 430 | 430 | 430 |
Specs
| Frame | NINER RDO CARBON FIBER: INTERNAL CABLE ROUTING; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; FLAT MOUNT; 12X142 THRU AXLE |
|---|---|
| Fork | NINER RDO FULL CARBON; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; INTERNAL CABLE ROUTING; FLAT MOUNT; 12X100 THRU AXLE |
| Rims | Niner Alloy, 700c aluminum clincher, 22.5mm internal |
| Hubs | Niner alloy |
| Axles |
Front: 12x100mm thru axle Rear: 12x142mm thru axle |
| Tires | SCHWALBE G-ONE ALLROUND PERFORMANCE RACEGUARD, TLE, 700 X 40 |
| Bottom Bracket | PRESTINE PF30 THREAD TOGETHER |
| Crankset | SRAM APEX 1 40T (47/50 - 170MM, 53/56 - 172.5MM, 59/62 - 175MM) |
| Chainrings | 40T |
| Shifters | SRAM APEX 1 11SP |
| Rear Derailleur | SRAM APEX 1 LONG CAGE |
| Cassette/Freewheel | SRAM PG 1130 11SP 11-42T |
| Chain | SRAM PC 1130 11SP |
| Brakes | SRAM APEX 1 HRD FM |
| Brake Levers | SRAM APEX 1 HRD |
| Handlebars | EASTON EA50 AX (47/50- 420MM, 53/56- 440MM, 59/62- 460MM) |
| Tape/Grips | NINER BAR TAPE |
| Stem | NINER ALLOY STEM, NINER GRAPHIC (47/50- 80MM, 53/56- 90MM, 59/62- 100MM) |
| Headset | NINER INTEGRATED SHIS DESCRIPTION IS42/28.6|IS52/40 |
| Seatpost | NINER ALLOY SEAT POST, 400MM, NINER GRAPHIC |
| Saddle | NINER CUSTOM WITH CR-MO RAILS, EMBOSSED NINER GRAPHIC |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Avalanche Grey/Slate / 47cm | 008022247151 | 00-802-22-47-15 |
| Avalanche Grey/Slate / 50cm | 008022250151 | 00-802-22-50-15 |
| Avalanche Grey/Slate / 53cm | 008022253152 | 00-802-22-53-15 |
| Avalanche Grey/Slate / 56cm | 008022256153 | 00-802-22-56-15 |
| Avalanche Grey/Slate / 59cm | 008022259154 | 00-802-22-59-15 |
| Avalanche Grey/Slate / 62cm | 008022262154 | 00-802-22-62-15 |
| Blood Red / 47cm | 008022247403 | 00-802-22-47-40 |
| Blood Red / 50cm | 008022250403 | 00-802-22-50-40 |
| Blood Red / 53cm | 008022253404 | 00-802-22-53-40 |
| Blood Red / 56cm | 008022256405 | 00-802-22-56-40 |
| Blood Red / 59cm | 008022259406 | 00-802-22-59-40 |
| Blood Red / 62cm | 008022262406 | 00-802-22-62-40 |
