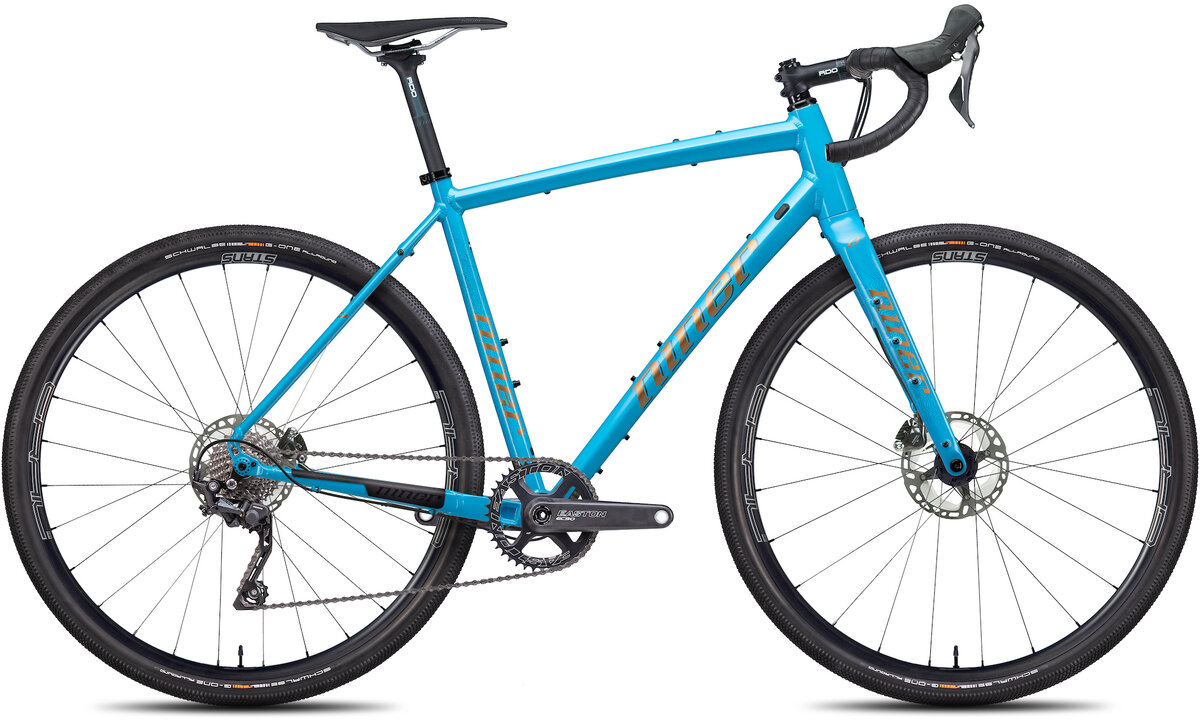

Niner RLT 9 5-Star GRX 1x

Niner RLT 9 5-Star GRX 1x
$4,699.00
Color: Azure Blue
Size: Select size
Please select options Unavailable
Give us a call for availability!

Details

RLT 9 Aluminum: ride beyond the city limits, without going beyond your budget. The unmatched versatility of this gravel bike gives its rider pure, unfettered freedom and access virtually everywhere.

bike frame with labeled dimensions
Bike Sizes:
47cm50cm53cm56cm59cm62cm
A. Reach (mm) 361 365 374 383 397 407
B. Stack (mm) 537 558 578 594 615 636
C. Standover (mm) 705 728 753 780 805 830
D. Effective Top Tube (mm) 510 525 545 565 585 605
E. Head Tube Angle 70° 70.5° 71° 71.5° 72° 72.5°
F. Head Tube Length (mm) 105 125 145 165 185 205
G. Seat Tube Angle 74.5° 74° 73.5° 73° 73° 72.5°
H. Seat Tube Length (mm) 430 460 490 520 550 580
J. Bottom Bracket Drop (mm) 75 75 75 70 70 70
K. Fork Rake/Offset (mm) 45 45 45 45 45 45
M. Wheelbase (mm) 1005 1012 1023 1036 1051 1060
N. Front to Center (mm) 582 589 599 610 625 634
O. Chainstay Length (mm) 430 430 430 430 430 430

Specs

Frame NINER HYDROFORMED 6061 ALUMINUM; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; FLAT MOUNT; 12X142 THRU AXLE
Fork NINER RDO FULL CARBON; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; INTERNAL CABLE ROUTING; FLAT MOUNT; 12X100 THRU AXLE
Rims Stans NoTubes Grail CB7, 700c carbon clincher
Hubs Stans NoTubes Neo Ultimate, centerlock
Spokes Sapim Laser
Axles Front: 12x100mm thru axle
Rear: 12x142mm thru axle
Tires SCHWALBE G-ONE ALLROUND EVO SUPER TERRAIN, TLE, ADDIX SPEEDGRIP, 700 X 45
Bottom Bracket EASTON PF30
Crankset EASTON EC90 CARBON 40T (47/50 - 170MM, 53/56 - 172.5MM, 59/62 - 175MM)
Chainrings 40T
Shifters SHIMANO GRX800 11SP
Rear Derailleur SHIMANO GRX800 GS 11SP SHADOW PLUS
Cassette/Freewheel SHIMANO XT M8000 11SP 11-42T
Chain SHIMANO HG 601 11SP
Brakes SHIMANO GRX800
Brake Levers SHIMANO GRX800
Handlebars EASTON EA50 AX (47/50- 420MM, 53/56- 440MM, 59/62- 460MM)
Tape/Grips NINER BAR TAPE
Stem NINER RDO STEM, NINER GRAPHIC (47/50- 80MM, 53/56- 90MM, 59/62- 100MM)
Headset NINER INTEGRATED SHIS DESCRIPTION IS42/28.6|IS52/40
Seatpost NINER RDO SEAT POST, 400MM, NINER GRAPHIC
Saddle NINER CUSTOM WITH CRN-TI RAILS, EMBOSSED NINER GRAPHIC

* Subject to change without notice.

Part Numbers

Option UPC MPN
Azure Blue / 47cm 000052247804 00-005-22-47-80
Azure Blue / 50cm 000052250804 00-005-22-50-80
Azure Blue / 53cm 000052253805 00-005-22-53-80
Azure Blue / 56cm 000052256806 00-005-22-56-80
Azure Blue / 59cm 000052259807 00-005-22-59-80
Azure Blue / 62cm 000052262807 00-005-22-62-80
