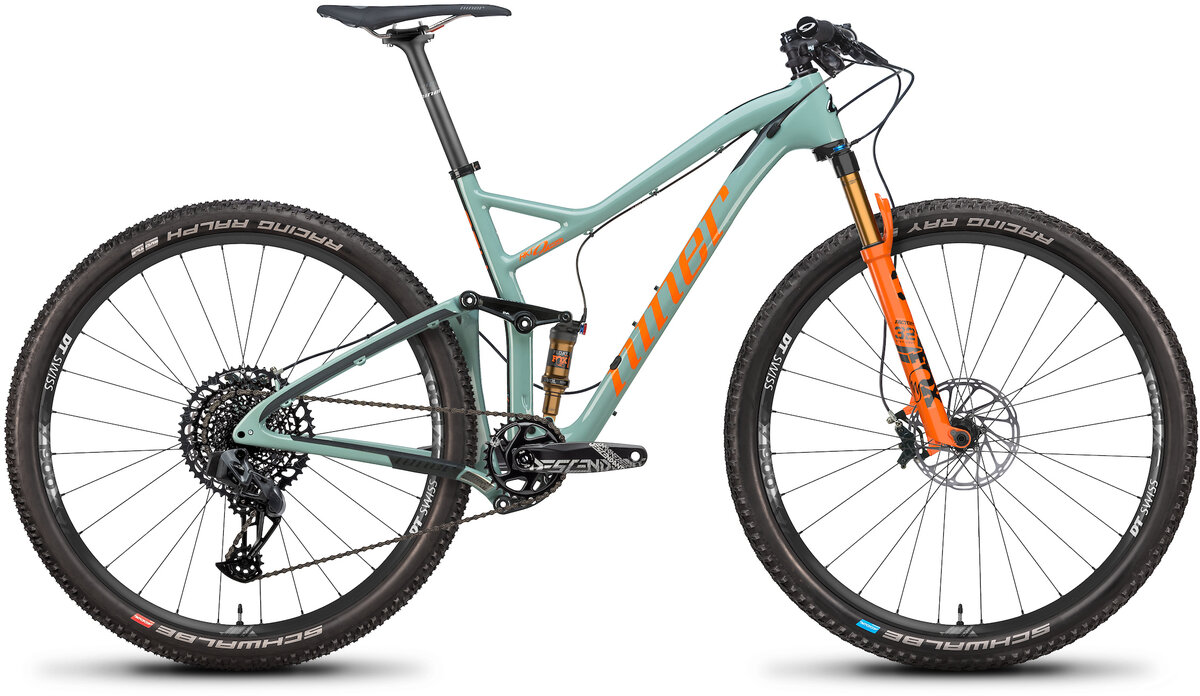

Niner RKT 9 RDO RS 3-Star GX Eagle AXS LTD

Niner RKT 9 RDO RS 3-Star GX Eagle AXS LTD
  • Color: Grey/Orange
  • Color: Satin Carbon/Magnetic Grey
$6,499.00
Color:
Size: Select size
Please select options Unavailable
Give us a call for availability!

Details

Prepare for launch with the RKT 9 RDO RS, our original carbon fiber cross-country bike. With a 100mm suspension fork and 90mm of highly efficient, patented CVA suspension travel, this singletrack missile is made for race-day missions and lofty podium landings.

bike frame with labeled dimensions
Bike Sizes:
Size XSSMMDLGXL
A. Reach (mm) 393 406 424 441 458
B. Stack (mm) 584 591 600 609 619
C. Standover (mm) 696 702 728 763 802
D. Effective Top Tube (mm) 555 570 590 610 630
E. Head Tube Angle 70.5° 71° 71° 71° 71°
F. Head Tube Length (mm) 95 100 110 120 130
G. Seat Tube Angle 74.5° 74.5° 74.5° 74.5° 74.5°
H. Seat Tube Length (mm) 381 406 457 509 559
J. Bottom Bracket Drop (mm) 35 35 35 35 35
M. Wheelbase (mm) 1074 1084 1103 1125 1146
N. Front to Center (mm) 636 646 667 687 708
O. Chainstay Length (mm) 439 439 439 439 439

Specs

Frame NINER RDO CARBON FIBER, 90MM CVA SUSPENSION, ALUMINUM ROCKER LINKS, ENDURO MAX PIVOT BEARINGS
Fork FOX 32 SC FLOAT FACTORY EVOL FIT4, W/ REMOTE L/O, KASHIMA COAT, 100MM, 110X15MM, 44MM OFFSET
Rear Shock FOX FLOAT DPS FACTORY EVOL, W/ REMOTE L/O, KASHIMA COAT
Rims DT Swiss X 1900 SPLINE, aluminum clincher, 25mm internal
Hubs DT Swiss 370 Centerlock, with 3-pawl
Spokes DT Champion straight pull
Axles Front: Boost 15x110mm thru axle
Rear: Boost 12x148mm thru axle
Tires FRONT: SCHWALBE RACING RAY EVO SUPER TERRAIN TLE ADDIX SPEEDGRIP 2.35
REAR: SCHWALBE RACING RALPH EVO SUPER TERRAIN TLE ADDIX SPEED 2.35
Bottom Bracket SRAM DUB PF30
Crankset SRAM DESCENDANT 7K EAGLE DUB, 32T (XS/S - 170MM, M/L/XL - 175MM)
Chainrings 32T
Shifters SRAM GX EAGLE AXS 12SP
Rear Derailleur SRAM GX EAGLE AXS 12SP W/BATT. COVER
Cassette/Freewheel SRAM EAGLE XG 1275, 10-52T
Chain SRAM GX EAGLE 12SP
Brakes SRAM G2 R
Brake Levers SRAM G2 R
Handlebars NINER FLAT TOP RDO, 780MM, NINER GRAPHIC
Tape/Grips NINER GRRRIPS L/O NYLON SOFT COMPOUND
Stem NINER ALLOY STEM, NINER GRAPHIC (XS/S/M- 80MM, L/XL- 90MM)
Headset NINER INTEGRATED SHIS DESCRIPTION IS42/28.6|IS52/40
Seatpost NINER CARBON SEAT POST, 370MM, NINER GRAPHIC
Saddle NINER CUSTOM WITH CR-MO RAILS, EMBOSSED NINER GRAPHIC

* Subject to change without notice.

Part Numbers

Option UPC MPN
Grey/Orange / X-Small 047702202158 04-770-22-02-15
Grey/Orange / Small 047702203155 04-770-22-03-15
Grey/Orange / Medium 047702204152 04-770-22-04-15
Grey/Orange / Large 047702205159 04-770-22-05-15
Grey/Orange / X-Large 047702206156 04-770-22-06-15
Satin Carbon/Magnetic Grey / X-Small 047702202257 04-770-22-02-25
Satin Carbon/Magnetic Grey / Small 047702203254 04-770-22-03-25
Satin Carbon/Magnetic Grey / Medium 047702204251 04-770-22-04-25
Satin Carbon/Magnetic Grey / Large 047702205258 04-770-22-05-25
Satin Carbon/Magnetic Grey / X-Large 047702206255 04-770-22-06-25
